CNC Laser Swiss Machining Services
Primo Medical Group offers CNC Laser Swiss machining for the rapid production of highly precise components in various volumes. With the ability to perform multiple operations at once, CNC Laser Swiss machining creates complex, intricate components in a single setup with extreme accuracy, reliable speed, and consistent repeatability.
What is CNC Laser Swiss Machining?
CNC Laser Swiss machining is a process that uses a high-powered laser beam in addition to traditional cutting tools to produce precise, small-diameter components. It can cut simple or complex shapes, as well as engrave materials, providing a high-accuracy method for creating detailed cuts, openings, and other features for intricate components. Using computer numerical control, CNC Swiss machining can simultaneously perform multiple operations with a high degree of precision and output.
Medical Laser Swiss Machining Capabilities
By utilizing various types of CNC Laser Swiss machines, we can quickly produce complex parts in a single operation with extreme accuracy. Less complex parts can be produced with even greater speed, and all CNC Laser Swiss machined parts are uniform across lots with very fine surface finishes. The following machines support our laser Swiss machining capabilities:
|
Machine |
Description |
|

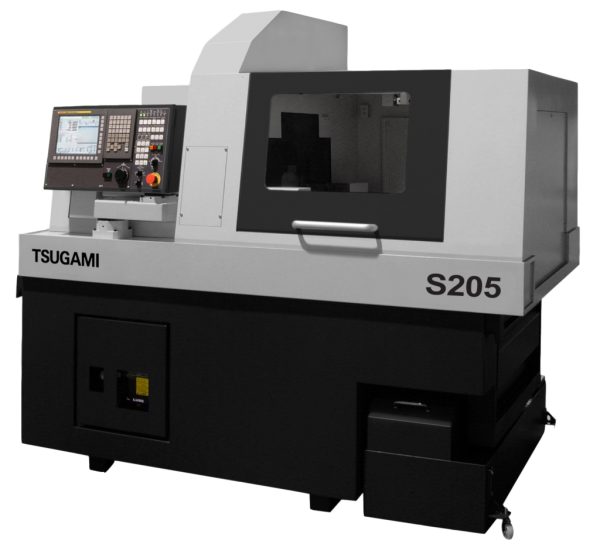

Tsugami S205 Laser Swiss |
5-axis Swiss CNC lathe with simultaneous machining capabilities and 3-toggle clamping system; uses cartridge-type live tools for up to 16—12 tools at 8,000 RPM and 4 tools at 10,000 RPM. |
|
Tsugami S206 Laser Swiss |
6-axis CNC lathe with 8 backworking live tools and Y-axis tool post for simultaneous complex machining on main/back spindle; enables high-speed, high-accuracy performance with a high-rigidity bed. |
|
Tsugami B0125-V Laser Swiss |
5-axis convertible Swiss lathe with 21 tool positions and increased back spindle capability for spindle, plus 8 fixed and rotary tools for simultaneous machining. |
|
IPG Laser Tube Cutting System |
Designed for precision machining of stents and laser-cut hypotubes, handling 0.25 to 25 mm tube diameters. |
|
Tsugami SS207 Laser Swiss |
High-performance turning center with B-axis swiveling and live tools that performs simultaneous 5-axis machining with CAD/CAM. |
Why Use Precision CNC Laser Swiss Machining?
CNC Laser Swiss machining is a preferred method for high-precision components, providing a range of production benefits. This process does not apply physical pressure, making the finished components well-defined and clean-cut, especially when dealing with thin or fragile materials, reducing damage and warping. The primary reasons for choosing CNC Laser Swiss machining over other methods include:
- Tight tolerance machining
- Highly repeatable
- Reduced setups
- Faster production
- Consistency across volumes
Materials for Laser Swiss Machining Operations
At Primo Medical Group, we understand the material properties of different metals and plastics to provide CNC Laser Swiss machining for various materials. We can machine:
Medical Swiss Machining for Precision Components
We specialize in medical Swiss machining, producing various components for the medical and medical device industries. With the ability to machine tools and precision devices to provide care to patients, run tests, and perform other essential medical functions, our capabilities for medical Swiss machining include the following products:
- Implants
- Medical Equipment
- Infusion Ports
- Vascular Catheter Components
- Surgical Tools
- Surgical Implants
- Other Small Medical Device Components
CNC Swiss Machining for Aerospace, Defense, and Other Industries
For aerospace and defense components that require tight tolerances, repeatability, and material performance, CNC Swiss machining produces the following parts with exceptional precision in mission-critical components:
- Couplers
- Flanges
- Retainer Rings
- Aircraft Seat Frames
- Other Applicable Components
Choose Primo Medical Group for Precision Laser Swiss Machining Services
Primo Medical Group offers over 70 years of experience in medical manufacturing. With ISO 13845:2016 certification and quality and regulatory compliance standards, including FDA registration, inspection capabilities, and validation, we are a proven partner in medical manufacturing projects. Our team can support your project goals from development through production and fulfillment, providing a full-service solution for producing high-quality medical products and other precision components. Contact us to discuss laser Swiss machining or request a quote to get started.
